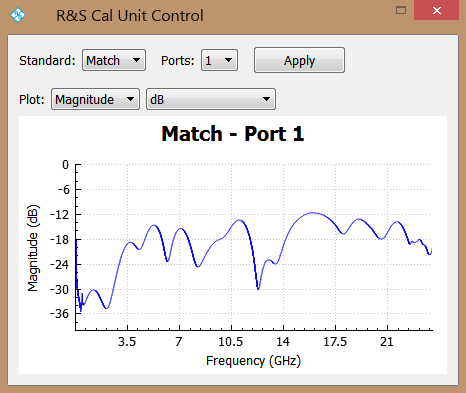

R&S Cal Unit Control Version 1.0

Manually control a cal unit connected to a Rohde & Schwarz VNA

Features

  • Control cal unit standards
  • Plot factory characterization

Requirements

  • Rohde & Schwarz Vector Network Analyzer
  • Windows XP Service Pack 2 or newer

Installation

  • Upload the installer to the instrument
  • Run the installer, following the on-screen instructions

Instructions

  • On a ZVA:
    Press the "System Config" hard key twice, choose the "External Tools" soft key and select "Cal Unit Control"
  • On a ZNB:
    Press the "Applic(ations)" hard key, then select "Cal Unit Control"
  • From Windows:
    Navigate to Start-Programs-R&S Cal Unit Control
