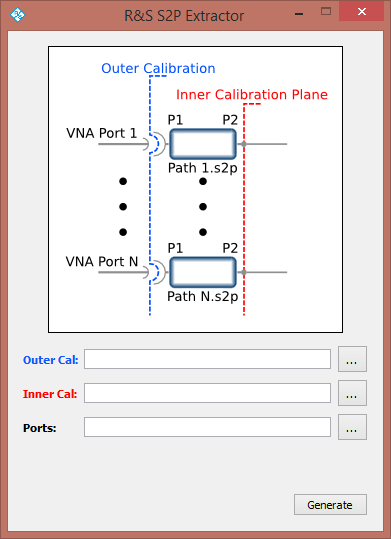

R&S S2P Extractor Version 1.6

S2P Extractor characterizes unmeasurable devices such as probes and test fixtures by subtracting specific calibrations.

Features

  • Generates touchstone files for probes, test fixture paths
  • Touchstone files can then be used with a standard cal kit calibration (UOSM, TOSM) for de-embedding

Requirements

  • Rohde & Schwarz Vector Network Analyzer
  • Windows XP Service Pack 2 or newer

Installation

  • Upload the installer to the instrument
  • Run the installer, following the on-screen instructions

Instructions

  • On a ZVA:
    Press the "System Config" hard key twice, choose the "External Tools" soft key and select "S2P Extractor"
  • On a ZNB:
    Press the "Applic(ations)" hard key, then select "S2P Extractor"
  • From Windows:
    Navigate to Start-Programs-R&S S2P Extractor
