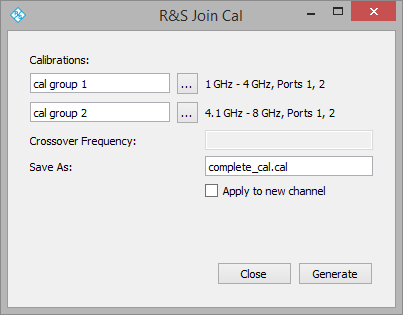

R&S Join Cal Version 1.1.1

Combine corrections from two calibrations with different frequency ranges

Features

  • Use cal groups or channels
  • Choose crossover frequency if there is overlap
  • Use different cal devices or methods for different frequency bands

Requirements

  • Rohde & Schwarz Vector Network Analyzer
  • Windows XP Service Pack 2 or newer

Installation

  • Upload the installer to the instrument
  • Run the installer, following the on-screen instructions

Instructions

  • On a ZVA:
    Press the "System Config" hard key twice, choose the "External Tools" soft key and select "Join Cal"
  • On a ZNB:
    Press the "Applic(ations)" hard key, then select "Join Cal"
  • From Windows:
    Navigate to Start-Programs-R&S Join Cal
