R&S Test Automation Version 1.0.3

R&S Test Automation connects to the instrument, runs all sweeps and saves all relevant data from your measurement setup.

Features

  • Auto-detects channels, diagrams, traces, markers, limit lines and ports used
  • Calculates skew and propagation delay as needed
  • Saves touchstone files, screenshots, csv files, and json files containing all results

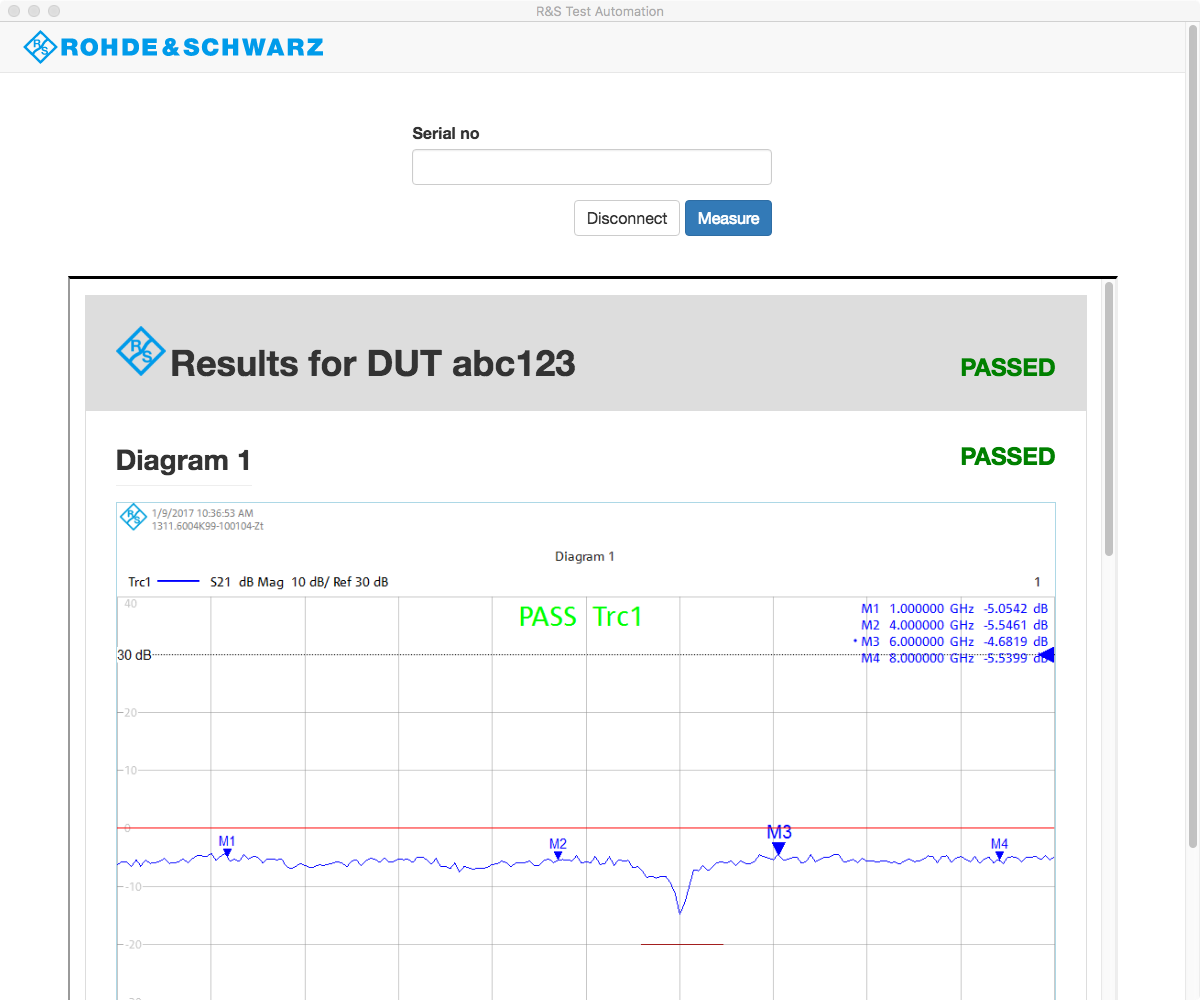

  • Generates an html report with screenshots, marker values and limit results
  • Organizes results by DUT serial number or file type
  • Output file settings can be customized
  • Can be run on- or off-instrument

Requirements

  • A Rohde & Schwarz ZNB/T Vector Network Analyzer
  • A TCP connection to the instrument (for remote control)
  • Windows 7 or greater

Installation

  • Download the installer to either the instrument or your PC
  • Run it
  • Follow the on-screen instructions

Instructions

  • Run 'R&S Test Automation' from the start menu
  • Enter the IP address of the VNA (127.0.0.1 for on-VNA install)
  • Enter DUT serial numbers and measure as appropriate
  • Results are saved to the directory provided by user in settings
