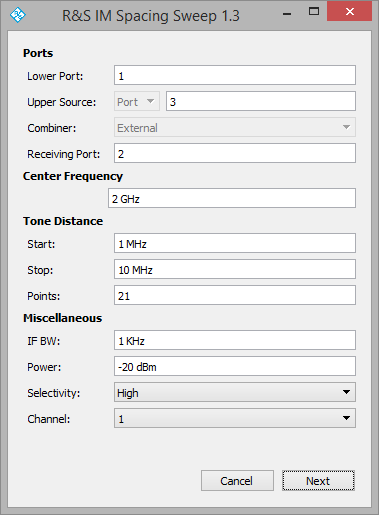

R&S IM Spacing Sweep Version 1.3

Perform intermod measurements vs tone distance for a given center frequency

Features

  • Calibration supported with a frequency superset
  • Apply setup to specific channel
  • Measurements occur as if native measurement type
  • Use internal or external couplers
  • Use of external signal generators is supported

Requirements

  • Rohde & Schwarz Vector Network Analyzer
  • Windows XP Service Pack 2 or newer

Installation

  • Upload the installer to the instrument
  • Run the installer, following the on-screen instructions

Instructions

  • On a ZVA:
    Press the "System Config" hard key twice, choose the "External Tools" soft key and select "IM Spacing Sweep"
  • On a ZNB:
    Press the "Applic(ations)" hard key, choose the "External Tools" tab then select "IM Spacing Sweep"
  • From Windows:
    Navigate to Start-Programs-R&S IM Spacing Sweep
