R&S Calibrate Switch Matrix Version 1.0.0

R&S Calibrate Switch Matrix is a utility for characterizing the switch matrix in a Rohde & Schwarz rack measurement solution.

Features

  • Automatically controls VNA, Switch Matrix
  • Guided VNA calibration
  • User-generated measurement procedures
  • Generates touchstone (.s2p) files

Requirements

  • Windows 7 or newer
  • MacOS 10.12.6 (Sierra) or newer
  • A Rohde & Schwarz VNA
  • A Rohde & Schwarz rack-based measurement system with a switch matrix

Installation

  • On windows: double-click to install and follow on-screen instructions
  • On MacOS: double-click to unpack dmg, then drag application into Applications folder

Instructions

  • Start application
  • Provide VNA, Switch Matrix IP addresses
  • Provide custom procedure

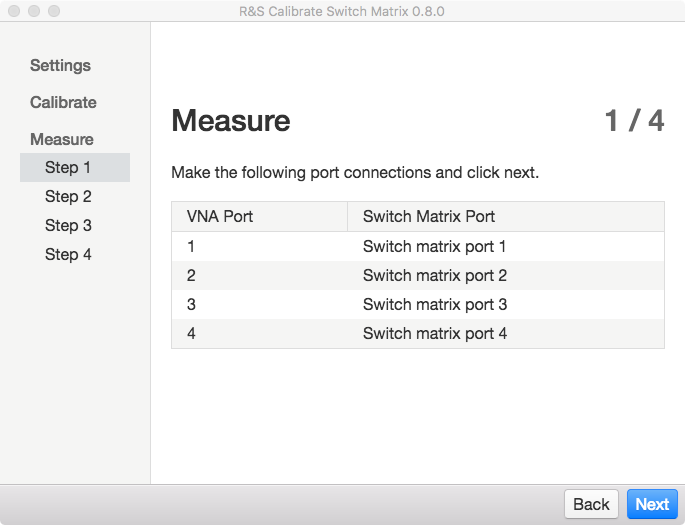

  • Follow the on-screen instructions to calibrate, measure
